World-Class SURVEILLANCE MEETS LOCAL
DISTRIBUTION.
LiveView Technologies (LVT) has partnered with DiegoTech.
Together, LVT and DiegoTech offer a new standard in physical security, with the ability to deploy the off-the-grid solution in mere minutes. Once deployed, you or your monitoring partner keep watch, ensuring your sites are even more secure, regardless of where they are located.
"LVT has worked closely with our team, empowering us to deploy a truly integrated security system to help protect our customers' sites, facilities, fleets, equipment, customers and employees. With LVT, we are making the world safer and more secure every day."
Diego V.
Owner, DiegoTech

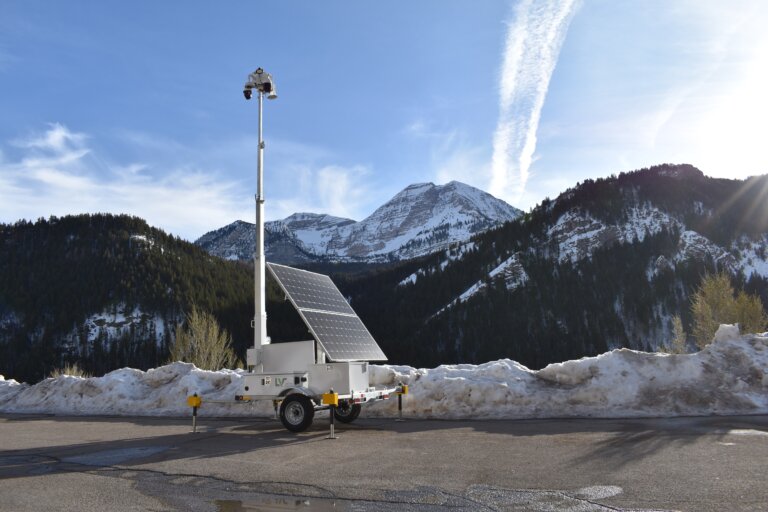

Live UNIT
The LVT live unit is the brains behind every LVT unit—telling the cameras, lights, and speaker what to do and when. Each live unit is built with the sensors and capabilities specific to your use case.
MAST
The telescoping mast houses all of the cables that connect the batteries in the base to the head unit. When fully deployed, the unit is more than 22 feet tall.
POWERING THE UNIT
Two 400 watt solar panels collect power that is stored in six deep cycle batteries with 460 Ah battery capacity. When there is not enough sunlight, LVT Units are equipped with a smart fuel cell generator.
tires
Two 13 inch tires make it so the unit can be towed almost anywhere—from parking lots to mountain tops.
outriggers
Four outriggers stabilize the unit while it’s deployed, making sure the unit is sturdy during extreme conditions.
tongue
When not in use for towing the unit, the tongue locks upright to keep it secure. The lock also secures the crank and prevents anyone from raising or lowering the mast.
RAPIDLY DEPLOYED
Easily secure anything anywhere with our mobile security trailers and other camera mounts. Setting up the LVT Unit takes minutes, not days.
VIEW TECHNICAL SPECS
Rapidly deployed
Set up takes less than 30 minutes, and once your unit is ready to go, you’ll have instant access to live surveillance through the LVT Platform.
TRAILER TECHNICAL SPECIFICATIONS
Weight
1,800 lbs
Suspension
2,000 lbs axle & springs
Tire Size
13”
Power
24 V DC @ 24 watts (disarmed)
@ 36 watts (armed)
@ 100 watts (max)
Solar Generation
800 watts
Battery Bank Capacity
460 Ah
TRAILER dimensions
Deployed
Transport
Tow
Length
103”
100”
135”
Height
264”
102”
102”
Width
96”
67.75”
67.75”
LVT Live UNIT
CAPABILITIES AND FUNCTIONS
- Intrusion detection
- Line crossing
- Dual bounding boxes
- Human and vehicle detection
- IR illumination and thermal
- Self healing
- Record and playback
- Security analytics
- Remote device management
- Two-way communication
- Flood and strobe lights
- Best in industry up times
Choose your software
Our technology uses active deterrence to deter crime and alerts you the instant something is happening on your property, giving you the chance to act before damage is done.
GENERAL
OMNI
D3
Video Management System (VMS)
A cloud-based system accessible from any web-enabled device
X
X
Cloud Data Storage
Off-site video storage maintained by LVT
X
X
Command Center
Centrally monitor, categorize, filter, and prioritize alerts in a single dashboard for multiple units and sites
X
X
analytics
Motion Detection
Senses movement in the unit’s range
-
X
Bounding Boxes (Dual)
Area the unit is set to watch
-
X
Human/Vehicle Detection
Senses and distinguishes between people and vehicles
-
X
ALERTS/NOTIFICATIONS
Health Monitoring
Monitors low voltage disconnect, power loss, and network summary
X
X
Email & SMS
Alerts from LVT Units sent to your mobile device and email
-
X
Push Notifications
Alerts from LVT Units sent to your browser
-
X
STROBES
Manual On/Off
Turn the strobe lights on and off with the click of a button
X
X
Scheduled On/Off
Choose when the strobe lights automatically turn on and off
-
X
Motion Detect On
Strobe lights automatically turn on when motion is detected
-
X
Escalated Alerts
Lights progress from blue, to white, to red to escalate deterrence factor
-
X
FLOOD LIGHTS
OMNI
D3
Manual On/Off
Turn the flood light on or off with the click of a button
X
X
Scheduled On/Off
Set when the light turns on and off
-
X
Motion Detect On
Automatically turns the lights on if motion is detected
-
X
SPEAKER
Speaker Talk Through
Talk through your phone or web browser directly to those on site
X*
X
Manually Triggered Messages
Play recorded, standard messages with the click of a button
X*
X
Scheduled Messages
Play recorded and customized ads, announcements, and music at set times
-
X
Motion Triggered Messages
Recorded, standard messages play when motion is detected
-
X
REPORTING
Basic Reporting
A pre-generated report which summarized the health of the unit(s)
X
X
Advanced Reporting
A summary of notifications and alerts detected by the unit
-
X
Event Report
Report of intrusions detected by the unit(s)
-
X
ADD-ONS
Virtual Monitoring
Third-party monitoring by live agents
X
X
Customer Metrics and Wins
Reduction of
shoplifting events
shoplifting events
Decrease in internal and external shrink
Decrease in dollar value of shoplifting events
Assisted in the arrest of a serial killer
Reduction in violent crime
In savings after preventing illegal dumping
Reduction in parking lot incidents
Decrease of inappropriate behavior, trespassing, drunk on premises, and other events
Reduction of
shoplifting events
shoplifting events
Decrease in internal and external shrink
Decrease in dollar value of shoplifting events
Assisted in the arrest of a serial killer
Reduction in violent crime
In savings after preventing illegal dumping
Reduction in parking lot incidents
Decrease of inappropriate behavior, trespassing, drunk on premises, and other events
The Best Security for You and Your Wallet
About DIEGOTECH
Technology systems have become an integral part for most building projects. DiegoTech can design a security and surveillance plan tailored to your specific needs. DiegoTech strives to maximize our clients technology investment while staying mindful of the continuously changing technology landscape.
